| 起源の場所: | 中国 |
| ブランド名: | XZH Test |
| 証明: | CE/ISO |
| モデル番号: | XHZS506YS |

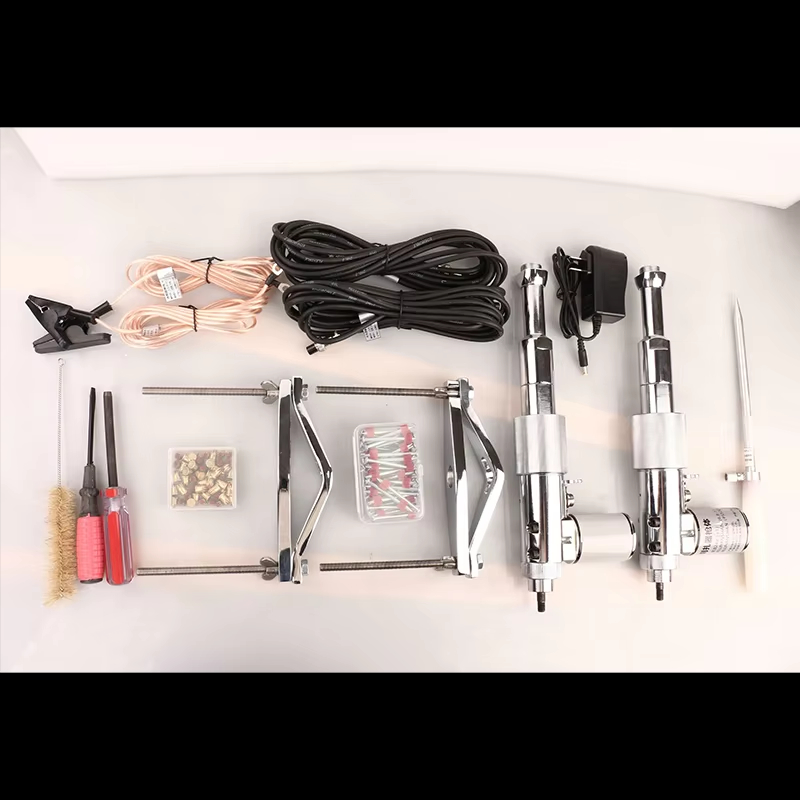

The cable piercing device is like a “cable detective” equipped with a “piercing expert” shooter and a “smart core” controller. The shooter, featuring a lightweight low-speed piston design, pierces cables precisely. It can be installed effortlessly at any angle. The controller harbors a “secret manual” of electronic detection and remotely commands the shooter to launch a “probe” nail. If the cable is energized, it short-circuits and “exposes its identity” instantly. If it remains silent, the cable is de-energized and safe to handle.
Features:
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;| Shooting device | 2 gun bodies; |
| Remote control distance | greater than 10 meters, can be remote controlled across the wall; |
| Control line length | 5 meters; |
| Clamp diameter | φ30-150mm; |
| Working power supply | charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours; |
| Controller | 270×230×120mm 2.5kg; |
| Complete set | 470×380×210mm 15.5kg (double gun 506Y). |
| Cable diameter mm | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Nail specifications | PS27C8 | PS37C8 | PS47C8 | PS52C8 | ||||
| Specification | black | blue | yellow | red | Recommended Use | 35kV and below | 35kV and above |
| Power | smallest | Small | middle | big | Use S1 yellow | Use S1 red (6.8*11mm) |
