| 起源の場所: | 中国 |
| ブランド名: | XZH Test |
| 証明: | CE/ISO |
| モデル番号: | XHHV535-6Z |

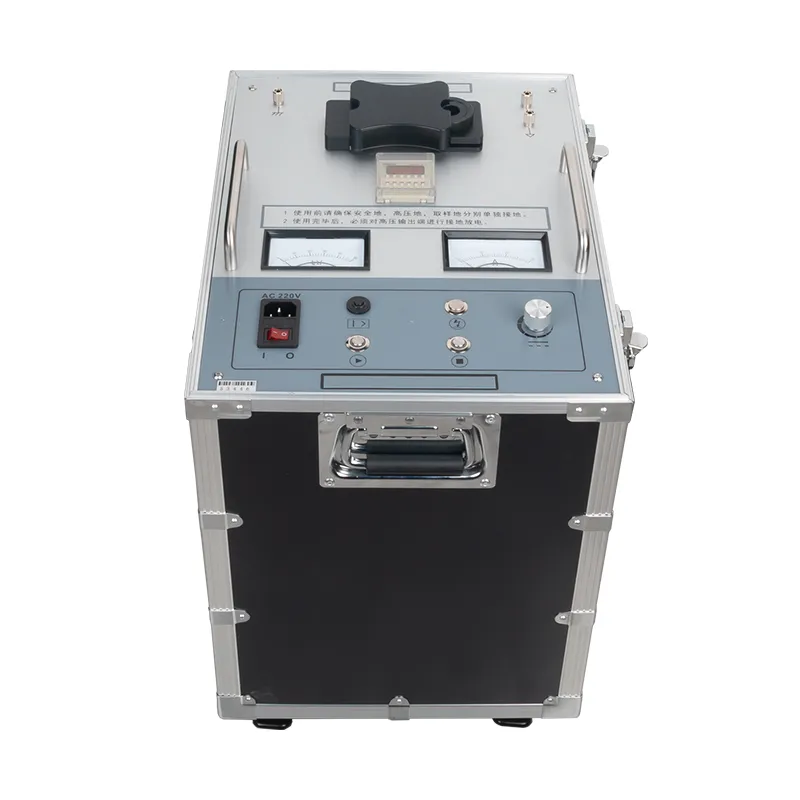

XHHV535-6Z
XHHV535-6Z high voltage surge generator integrates DC high voltage source, energy storage capacitor and discharge ball gap. More than 30 kg, pulse energy storage capacitor more than 20 kg).
The power supply incorporates high-precision, high - stability special high - voltage electronic components along with high - frequency high - voltage technology. As a result, the structure of the entire machine is simple and the weight is ultra - light. This pulse generator, designed with a humanized operation mode to cater to people's habit of using transformers and operation boxes to produce DC high voltage, is safe and reliable. It can endure impacts without getting damaged. Even in the event of a high voltage short circuit to the ground, it can still work normally. It is now the lightest and most user - friendly portable DC shock high - voltage equipment.
★ With over current, over voltage, overheating automatic protection function;
★ with DC voltage resistance, impact discharge function;
★ High voltage pulse output is uniform and controllable;
★ Strong short-circuit protection function, can make the high-voltage output directly to the ground short-circuit work;
★ With current, voltage double 2.5 level pointer table display, intuitive and clear, fault point is fully discharged at a glance, real-time reaction discharge process;
★ High voltage side voltage measurement, real-time accurate;
★ with zero start protection more safe and reliable;
★ Unique high voltage measurement design, in the stopped state, the voltmeter can indicate the capacitance voltage value in real time, so that the operator knows the high voltage;
★ Discharge time can be arbitrarily set within the appropriate interval.
| Impact high voltage | 0-35kV(default 0-32kV) |
| High voltage partial pressure | Voltage Accuracy 2.5 grade |
| Built-in capacitor | 6μF |
| Working power | AC 220V ± 10% 50Hz ± 2Hz(60Hz can be customized) |
| Discharge power | 0-3072J(default 0-1568J) |
| Output voltage polarity | negative polarity |
| Impact power | 400W |
| Overcurrent protection | 16A(more than 3 seconds) |
| Overtemperature protection | 65ºC |
| Ambient temperature | -20 ~ + 50 ºC |
| Impact time | 1 ~ 10 seconds |
| Over temperature protection | 85 ºC |
| Volume/size | 430L × 345W × 545H(mm) |
