| 起源の場所: | xi'an |
| ブランド名: | XZH TEST |
| 証明: | ISO |
| モデル番号: | XHSB505B |
Instrument Layout and Description

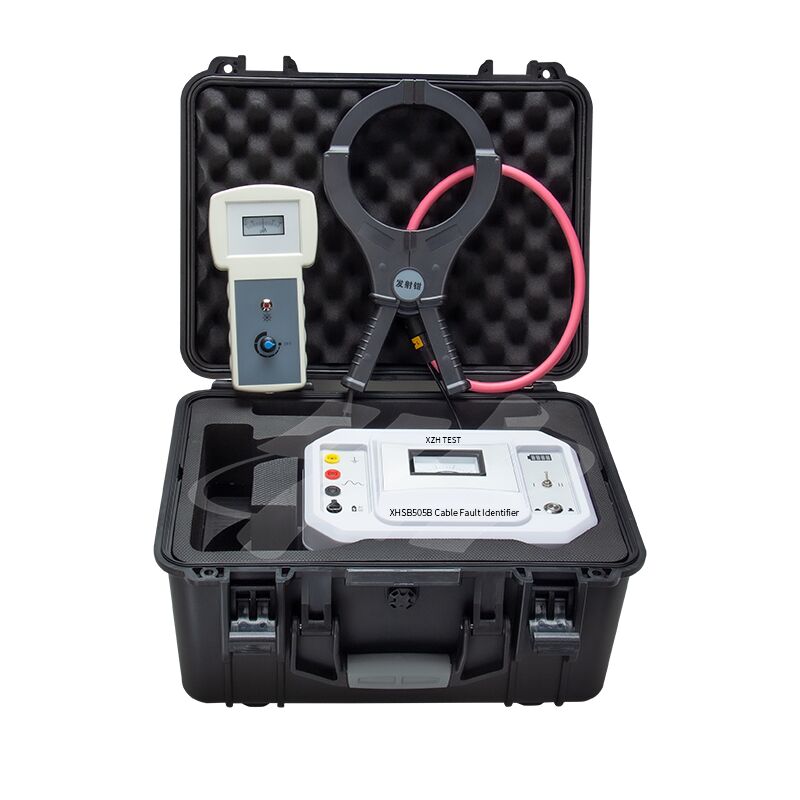

This instrument consists of a transmitter, transmitter clamp, receiver clamp, and handheld receiver.
Transmitter Panel:
1. Grounding Terminal: Safety grounding terminal for the equipment;
2. Positive Output Terminal: Transmitter output positive, connect to the red output wire;
3. Negative Output Terminal: Transmitter output negative, connect to the black output wire;
4. Charging: DC 12V charging port, connect a 12V charger to start charging;
5. Power Switch: Turns the power on/off;
6. Position Switch: "Ⅰ" indicates a non-energized cable; "Ⅱ" indicates an energized cable;
7. Battery Level Indicator: Indicates the battery level in real time when the built-in battery is working;
8. Ammeter: Displays the instantaneous average value of the output current.
1. The handheld receiver has an adjustment knob to adjust the received signal strength (clockwise rotation increases signal strength; counterclockwise rotation decreases signal strength; it also has an on/off function).
2. There is a BNC connector on the bottom of the handheld receiver for connecting a receiver clamp to receive signals.
