Portable SF6 relay calibrator for protection testing

Portable SF6 relay calibrator for protection testing

製品詳細:
起源の場所: 中国・陝西省西安
ブランド名: XZH TEST
証明: ISO CE
モデル番号: XHJB600
詳細情報
起源の場所:
中国・陝西省西安
ブランド名:
XZH TEST
証明:
ISO CE
モデル番号:
XHJB600
力:
AC220V±10% 50Hz; DC12V/1.5A
ハイライト:

High Light

ハイライト:

Portable SF6 density relay calibrator

,

SF6 density relay protection calibrator

,

Portable relay protection tester

Trading Information
最小注文数量:
1セット
パッケージの詳細:
木製梱包
受渡し時間:
5~8営業日
支払条件:
T/T
供給の能力:
3000台/年
製品の説明

Product Description


XHJB600 SF6 Gas Density Relay Tester is a lightweight, portable device designed to perform standard conversion of SF6 gas pressure and automatically calibrate SF6 density meters and pressure gauges.

Key Advantages


  • 3.5-inch color LCD with Chinese menu, very user-friendly.
  • Shows actual pressure, 20℃ converted pressure, and ambient temperature.
  • Built-in storage for 100 measurement records.
  • RS-232 port supports data transmission to computer.
  • Quick connectors reduce gas leakage and speed up operation.
  • Self-calibration ensures long-term stability.
  • High-precision pressure sensor and magnetic fluid technology applied.

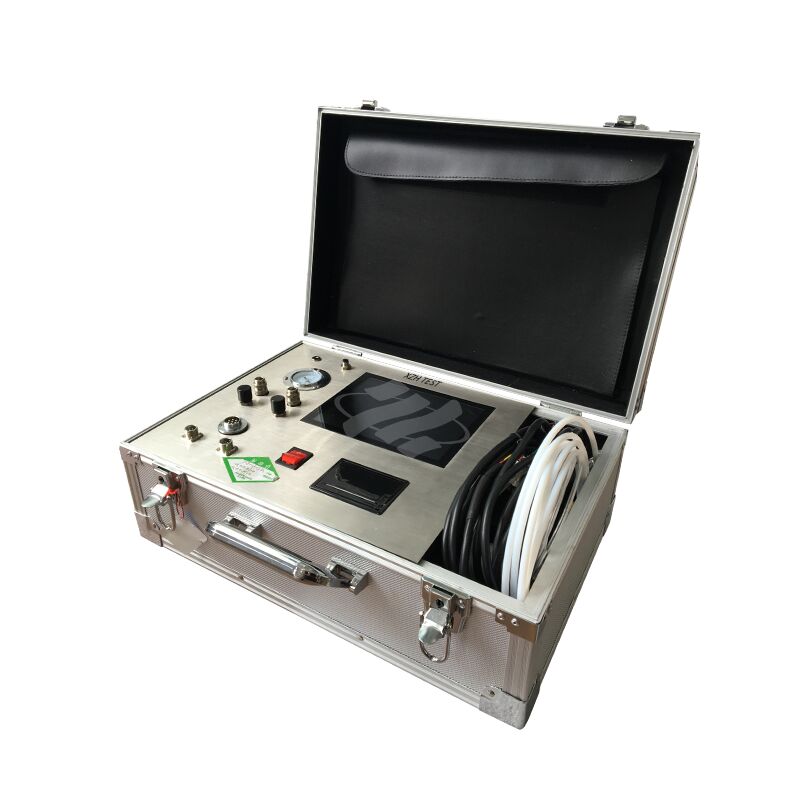

Portable SF6 relay calibrator for protection testing 0

Specifications


  • Pressure range: 0~1.000 MPa; Accuracy: 0.25 grade
  • Pressure display resolution: 0.001 MPa
  • Temperature range: -20℃~60℃; Resolution: 0.1℃
  • Power: AC 220V±10% 50Hz; DC 12V/1.5A

Application Areas:

♦ Power systems: power generation, transmission, transformation, and distribution;

♦ Factories and Mines: Large-scale manufacturing plants and various mining companies;

♦ Metallurgy and Petrochemicals: Smelting, chemical processing, water treatment, etc.;

♦ Transportation: Ports/railways/highways/airports and municipal streetlights, etc.;

♦ Enterprises and Institutions: Logistics departments of large enterprises and institutions;

♦ Construction Industry: Large construction and property management companies;

♦ Power Installation and Testing: Power installation and commissioning companies of all levels;
