Portable Digital Grounding Tester Simple to Operate

Name: Portable Digital Grounding Tester Simple to Operate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702SC
Price: 440.00 USD
Availability: InStock

製品詳細:

起源の場所:	中国・陝西省西安
ブランド名:	XZH TEST
証明:	ISO CE
モデル番号:	XHDT702SC

詳細情報

起源の場所:

中国・陝西省西安

ブランド名:

XZH TEST

証明:

ISO CE

モデル番号:

XHDT702SC

測定範囲:

10A：1mΩ～2Ω、1A：2Ω～20Ω

ハイライト:

High Light

ハイライト:

Portable Grounding Tester

Digital Ground Tester

Simple to Operate Earth Resistance Tester

Trading Information

最小注文数量:

1セット

パッケージの詳細:

木製梱包

受渡し時間:

5～8営業日

支払条件:

T/T

供給の能力:

3000台/年

製品の説明

Product Overview

XHDT702SC Grounding Downlead Continuity Tester is used to measure the continuity resistance between the grounding downleads of substation power equipment and the ground grid or adjacent equipment.

Performance Features

High-speed single-chip microcomputer control ensures high automation and easy operation, suitable for on-site quick testing.
Power supply technology supports multiple current gears and a wide measurement range, adapting to different on-site testing scenarios.
Intelligent power management helps save energy and maintain stable instrument performance.
320X240 dot-matrix 65K true-color LCD with ultra-small pixels ensures clear data display in strong light.
Power-off storage function can save 1000 groups of test data, available for query anytime.
Built-in lithium battery and charger make on-site operation more convenient without external power supply.

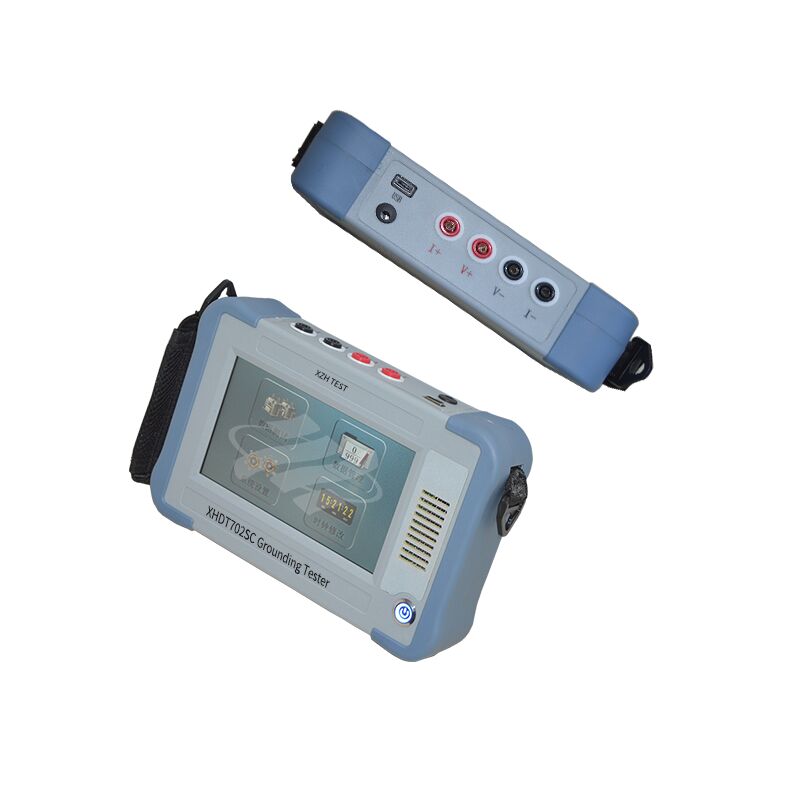

Portable Digital Grounding Tester Simple to Operate 0

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH
