Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Name: Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-44/44
Price: 7,970.00 USD
Availability: InStock

製品詳細:

起源の場所:	Xi'an、Shaanxi、中国
ブランド名:	XZH TEST
証明:	ISO,CE
モデル番号:	XHBP-44/44

詳細情報

起源の場所:

Xi'an、Shaanxi、中国

ブランド名:

XZH TEST

証明:

ISO,CE

モデル番号:

XHBP-44/44

広い電圧入力:

380/220V±15%/50Hz±5%

正確な周波数調整:

0.1Hz 感度、<0.05% 不安定性

品質係数の範囲:

30～90

フルパワーでの連続運転:

60分

最大テスト容量:

1000kVA

共鳴電圧波形:

純粋な正弦波、波形歪み <1.0%

ハイライト:

High Light

ハイライト:

lightweight resonance experimental apparatus

low power consumption hipot tester

high precision AC DC tester

Trading Information

最小注文数量:

1台

価格:

交渉可能

パッケージの詳細:

木製梱包

受渡し時間:

8～10日

支払条件:

T/T

供給の能力:

2000年郡/年

製品の説明

Product Introduction

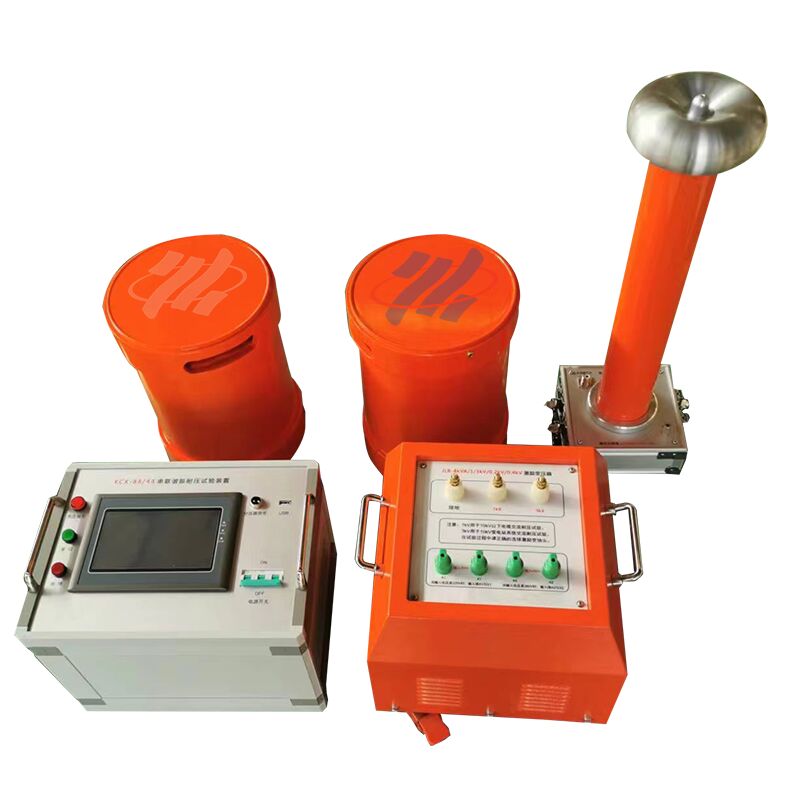

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits

Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
Low heat generation under rated load, ensuring long-term stable operation.
Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
User-friendly operation with multiple customizable working modes to fit diverse testing demands.
Convenient on-site power supply via universal 220V or 380V single-phase power input.

Core Technical Parameters

Rated output voltage: Up to 500kV (AC RMS)
Output frequency range: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
Max test capacity: 1000kVA
Full-power continuous operation: 60 minutes
Quality factor range: 30～90
Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
Wide voltage input: 380/220V±15%/50Hz±5%
