Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Name: Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYB-10/100
Price: 7,970.00 USD
Availability: InStock

製品詳細:

起源の場所:	Xi'an、Shaanxi、中国
ブランド名:	XZH TEST
証明:	ISO,CE
モデル番号:	XHYB-10/100

詳細情報

起源の場所:

Xi'an、Shaanxi、中国

ブランド名:

XZH TEST

証明:

ISO,CE

モデル番号:

XHYB-10/100

ハイライト:

High Light

ハイライト:

Automatic tuning resonance tester

Series resonance apparatus with protection

AC DC hipot tester

Trading Information

最小注文数量:

1台

価格:

交渉可能

パッケージの詳細:

木製梱包

受渡し時間:

8～10日

支払条件:

T/T

供給の能力:

2000年郡/年

製品の説明

Product Overview

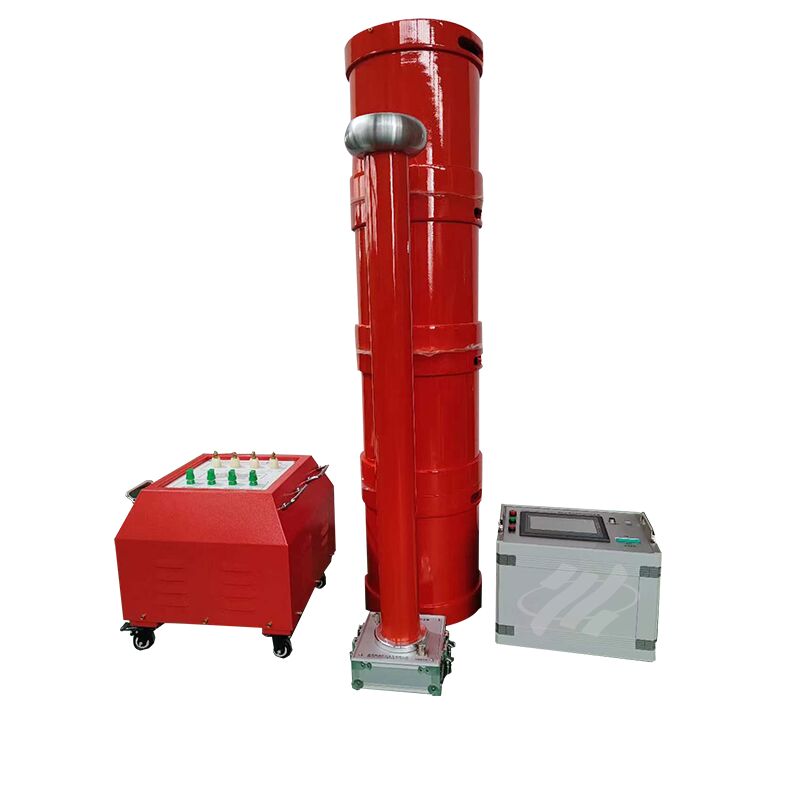

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights

Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
Low temperature rise during rated load operation, enhancing the service life of components.
Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
Multiple working modes available, realizing simple and efficient operation.
220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters

Rated Output Voltage: ≤500kV (AC RMS)
Output Frequency: 20～300Hz
Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
Test Capacity: ≤1000kVA
Continuous Working Time (Full Power): 60min
Quality Factor: 30～90
Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
Working Power Supply: 380/220V±15%/50Hz±5%
