Factory Supplier Underground Pipeline Locator Cable Route Tracer Detecting Buried Cable Path

Name: Factory Supplier Underground Pipeline Locator Cable Route Tracer Detecting Buried Cable Path
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHLJ504L
Price: 1,050.00 USD
Availability: InStock

製品詳細:

起源の場所:	中国
ブランド名:	XZH Test
証明:	CE/ISO
モデル番号:	XHLJ504L

詳細情報

起源の場所:

中国

ブランド名:

XZH Test

証明:

CE/ISO

モデル番号:

XHLJ504L

ハイライト:

High Light

ハイライト:

underground pipeline locator detector

buried cable tracer tool

cable route detector with warranty

Trading Information

最小注文数量:

1ユニット

パッケージの詳細:

木製の箱

受渡し時間:

5-8作業日

支払条件:

T/T

供給の能力:

2000ユニット/年

製品の説明

Basic Info.

Model NO.

XHLJ504L

Transport Package

Wooden

Trademark

XZH TEST

Origin

China Xi′an

HS Code

854320100

Production Capacity

100 Pieces /Year

Product Description

Intelligent Multi Function Underground Pipe Locator Cable Route Tracer

XHLJ504L Cable Route tracer is specially-designed for detecting the underground cable layout position and underground depth in a certain range.

Cable route detector consists of signal transmitter and receiver (Cable fault pinpoint detector), both of which finish the detection. By united operation the Cable route detector could exactly pinpoint the cable route in the probable range of cable burial.

§1.Introduction Cable Route tracer is specially-designed for detecting the underground cable layout position and underground depth. in a certain range. Cable route detector consists of signal transmitter and receiver (Cable fault pinpoint detector), both of which finish the detection. By united operation the Cable route detector could exactly pinpoint the cable route in the probable range of cable burial.

§2 ,Main consist of cable route tracer Cable route tracer mainly consists of route signal transmitter and
receiver. 2.1 Cable Route signal transmitter Cable route tracer is the big power route signal transmitter required in detecting the underground cable route.

2.1.1 Main Technical Index Parameters.
a) big power output, anti-vibration, strong anti-interference ability, stable and reliable;
b) With reliable over current, open circuit and short circuit protection function;
c)Output Frequency: Audio Frequency.
d) Output signal:intermittent,0~50Vpp
e) Working power supply:220V(1±10%) 50Hz(1±5%);

f) Output power:100W;
g) Output current:0~2A;

Main Function& Features
big power output, anti-vibration, strong anti-interference ability, stable and reliable;
With reliable over current, open circuit and short circuit protection function;
More accurate and quick to tracing

Technical data
Output Frequency: Audio Frequency.
Output signal:intermittent,0~50Vpp
Power supply:220V(1±10%) 50Hz(1±5%);
Output power:100W;
Output current:0~2A;
Receiving mode electro-magnetic induction

technical datas

Output Frequency	Audio Frequency.
Output signal	intermittent,0~50Vpp
Power supply	220V(1±10%) 50Hz(1±5%)200mA
Output power	100W
Output current	0~2A
Receiving mode	electro-magnetic induction

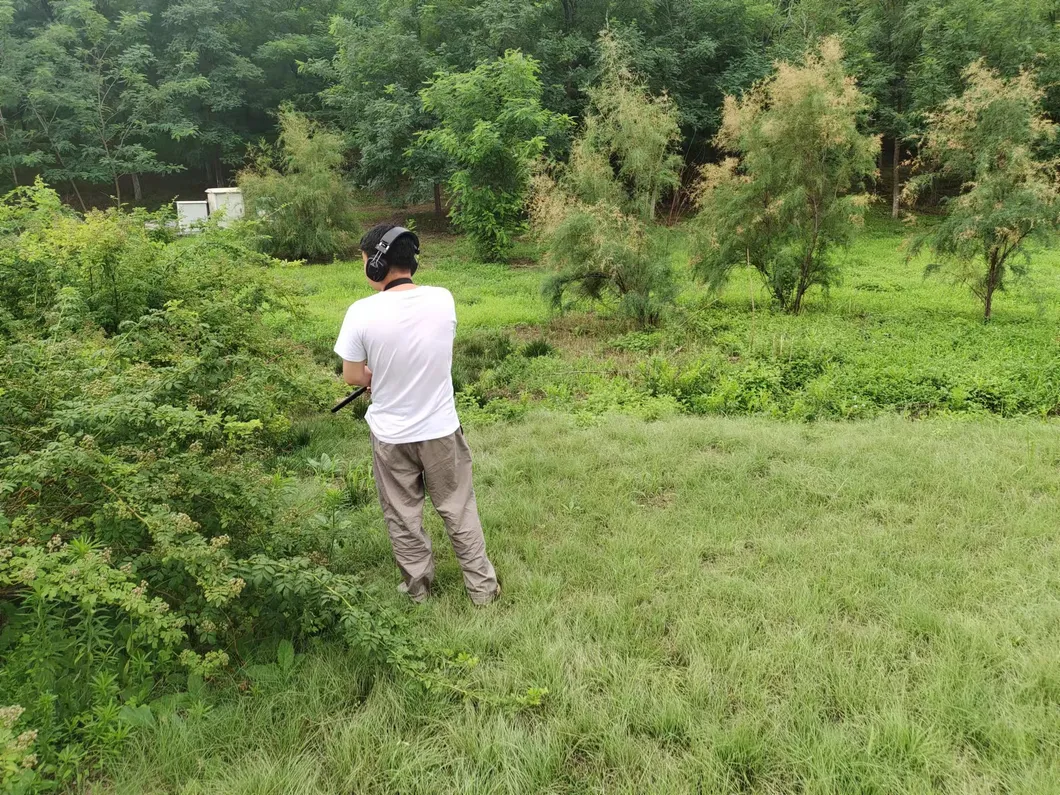

Factory Supplier Underground Pipeline Locator Cable Route Tracer Detecting Buried Cable Path 0
