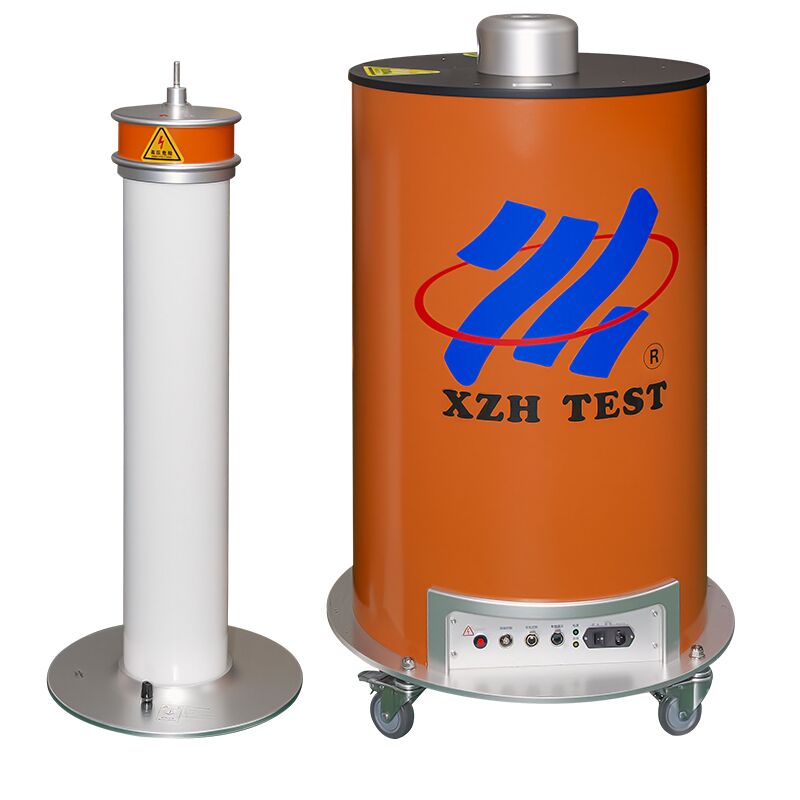

LCR Damped Oscillation Principle Cable Fault Locator

Name: LCR Damped Oscillation Principle Cable Fault Locator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHOW560
Price: 1,050.00 USD
Availability: InStock

製品詳細:

起源の場所:	中国西安陝西省
ブランド名:	XZH TEST
証明:	ISO CE
モデル番号:	XHOW560

詳細情報

起源の場所:

中国西安陝西省

ブランド名:

XZH TEST

証明:

ISO CE

モデル番号:

XHOW560

ハイライト:

High Light

ハイライト:

LCR damped oscillation principle Cable Fault Locator

Comprehensive Diagnostic System Cable Insulation

Cable Insulation Diagnostic System

Trading Information

最小注文数量:

1セット

パッケージの詳細:

木製のパッケージ

受渡し時間:

5～8営業日

支払条件:

T/T

供給の能力:

3000台/年

製品の説明

XHOW560

Cable Insulation Comprehensive Diagnostic System, based on the LCR damped oscillation principle, conducts overall assessment and analysis of cable insulation status after completing DC cable charging.

Performance characteristics

The XHOW560 cable insulation comprehensive diagnostic system uses a built-in high-voltage reactor and a high-voltage real-time solid-state switch to generate a damped oscillating voltage wave with the test cable. This applies a sinusoidal voltage wave, close to the power frequency, to the test cable, exciting discharge signals at potential defects and allowing for the location and assessment of the cable insulation condition. Based on VLF ultra-low frequency voltage detection of cable insulation dielectric loss, it provides a comprehensive evaluation and analysis of the cable insulation condition.

Technical Specifications

★ DAC Output: 30/60kV 20-500Hz

★ VLF Output: 30/60kV 0.05, 0.1, 0.5Hz

★ DC Output: 0-30/60kV

★ Partial Discharge Test: 5pC-10nC Resolution: 1pC

★ Partial Discharge Bandwidth: 100-500kHz

★ Partial Discharge Positioning: 100kHz-20MHz

★ Resolution: 0.01%

LCR Damped Oscillation Principle Cable Fault Locator 0
