Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV

Name: Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHOW560
Price: 1,050.00 USD
Availability: InStock

製品詳細:

起源の場所:	シアン・シャンシ
ブランド名:	XZH TEST
証明:	ISO
モデル番号:	XHOW560

詳細情報

起源の場所:

シアン・シャンシ

ブランド名:

XZH TEST

証明:

ISO

モデル番号:

XHOW560

ハイライト:

High Light

ハイライト:

DC Output 0-30/60kV Cable Fault Locator

Comprehensive Diagnostic Cable Insulation Diagnostic System

Cable Insulation DC Output Cable Tester

Trading Information

最小注文数量:

1セット

パッケージの詳細:

木製のパッケージ

受渡し時間:

5～8営業日

支払条件:

T/T

供給の能力:

3000台/年

製品の説明

XHOW560

XHOW560 Cable Insulation Comprehensive Diagnostic System adopts the LCR damped oscillation principle. It evaluates cable insulation comprehensively following the DC charging of the cable.

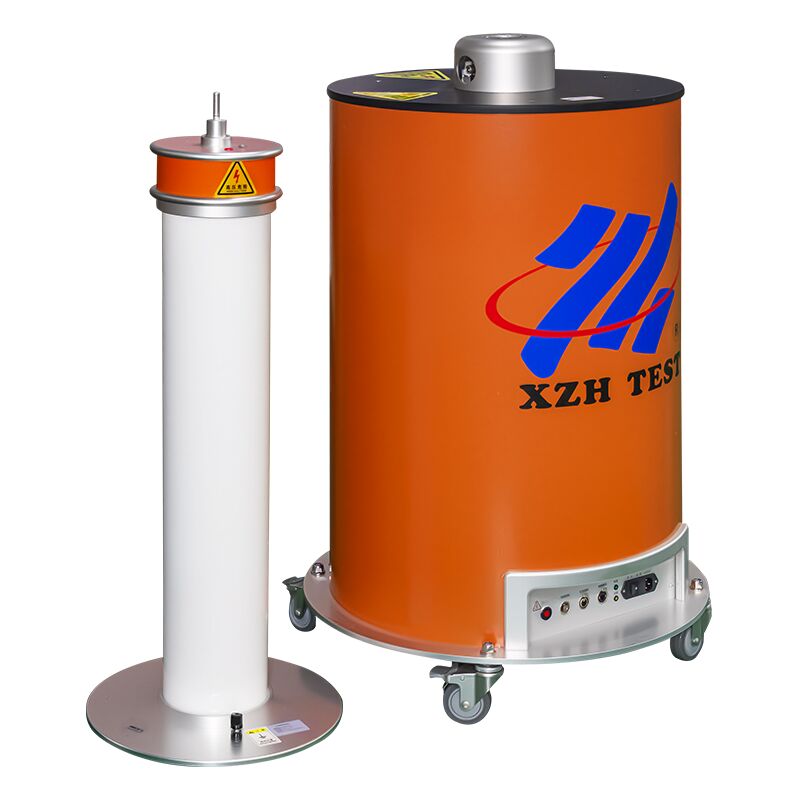

Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV 0

Technical Specifications

Partial Discharge Bandwidth: 100-500kHz

Partial Discharge Positioning: 100kHz-20MHz

Resolution: 0.01%

DAC Output: 30/60kV 20-500Hz

VLF Output: 30/60kV 0.05, 0.1, 0.5Hz

DC Output: 0-30/60kV

Partial Discharge Test: 5pC-10nC Resolution: 1pC

Application Sites:

Power systems: power generation, transmission, transformation, and distribution;
Factories and Mines: large-scale manufacturing plants and various mining companies;
Metallurgy and Petrochemicals: smelting, chemical processing, water treatment, etc.;
