Grounding Lead Continuity Tester - Easy to Operate

Name: Grounding Lead Continuity Tester - Easy to Operate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702
Price: 440.00 USD
Availability: InStock

製品詳細:

起源の場所:	中国・陝西省西安
ブランド名:	XZH TEST
証明:	ISO CE
モデル番号:	XHDT702

詳細情報

起源の場所:

中国・陝西省西安

ブランド名:

XZH TEST

証明:

ISO CE

モデル番号:

XHDT702

重さ:

5kg

ハイライト:

High Light

ハイライト:

Easy to Operate Ground Tester

Grounding Lead Continuity Tester

Continuity Testing Ground Tester

Trading Information

最小注文数量:

1セット

パッケージの詳細:

木製梱包

受渡し時間:

5～8営業日

支払条件:

T/T

供給の能力:

3000台/年

製品の説明

Product Overview

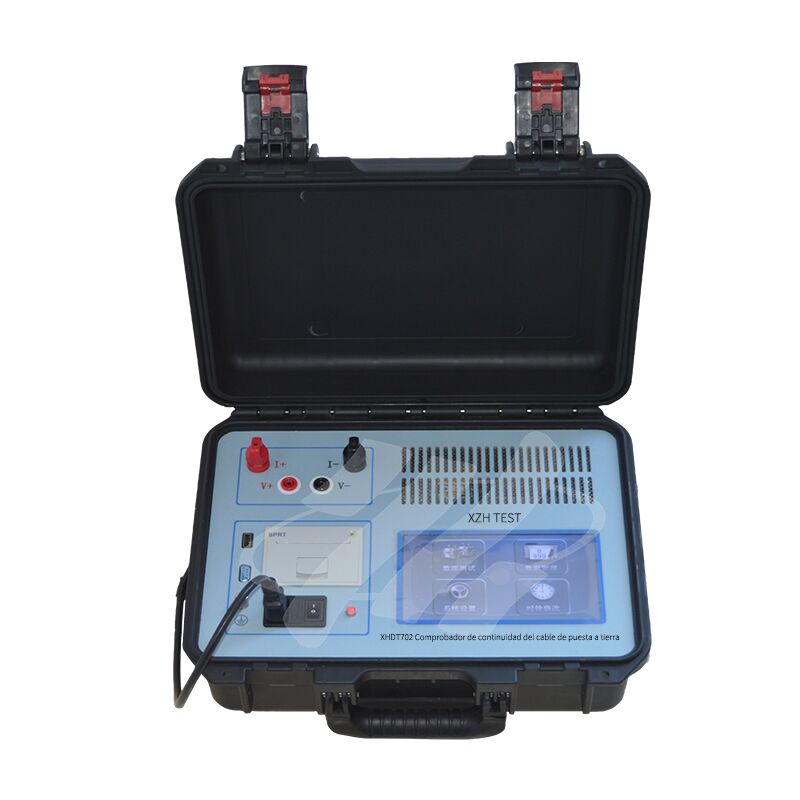

The XHDT702 Grounding Downlead Continuity Tester is specifically designed for measuring the continuity resistance between the grounding downleads of power equipment in substations and the ground grid (or adjacent equipment). It is a professional testing instrument that meets the daily detection needs of power systems.

Performance Features

The entire machine is controlled by a high-speed single-chip microcomputer, featuring high automation and simple operation, which can effectively improve testing efficiency.

The instrument adopts advanced power supply technology, with multiple current gears and a wide measurement range, capable of adapting to different testing scenarios.

It is equipped with intelligent power management technology, which can effectively save power and extend the service life of the instrument.

It is equipped with a 320X240 dot-matrix 65K true-color LCD with ultra-small pixels, ensuring clear display even under strong light conditions.

The instrument has a built-in power-off storage function, which can store up to 1000 groups of test data for easy query at any time.

The instrument is equipped with a built-in lithium battery and a built-in charger, making it convenient to use anytime and anywhere without additional power supply.

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH
